Product Details

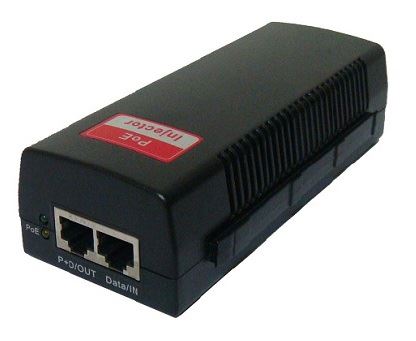

PSE152

802.3af POE Injector, 15W

Inquire

Download

Product Introduction

FEATURES

Compliant with IEEE802.3af
15W output power
Data rate: 10/100Mbps
Full protection for OCP, OLP, and OVP
LED indication for power and POE status
Delivering power up to 328ft (100m)

OVERVIEW

The PSE152 is an economical POE Injector that feeds power to powered devises (PD) such as wireless Access Points (APs), IP cameras, IP phones, Thin Computers, Printers, or Network Attached Storage (NAS) by Cat5e or Cat6 network cables. With an internal power supply, the PSE152 accepts full range of AC Power (100-240V) into low voltage and delivers power up to 15W and 100 meters distance.

SPECIFICATIONS

Input	100-240VAC 50/60Hz
Output	15W(Max)
Power + Data Out	1/2(+)&3/6(-) for Power
Data In	Connects PC/HUB/Switch
Weight	0.35Kg
Dimensions	146(L) x 64(W) x 42(T) mm
Data rate	10/100 M bit/s
Ethernet Cable	TIA/EIA 568B Cat.5e or Cat.6
Connector	RJ-45
Operating Temperature	0°C~40°C
Storage Temperature	-10°C~70°C
Operating Humidity	5%~90%RH
LED	AC Power on, Ethernet status
Certification	CE, FCC

ORDERING INFORMATION

PSE152A	802.3af POE Injector, 15W, US Type
PSE152B	802.3af POE Injector, 15W, EURO Type
PSE152C	802.3af POE Injector, 15W, UK Type
