FPCC--B

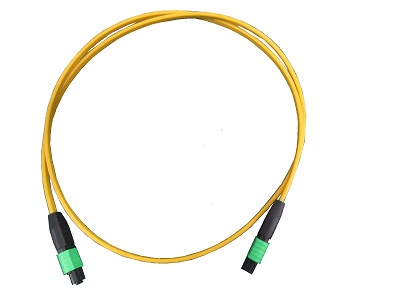

MTP/MPO Array Cable

Inquire

Product Introduction

FEATURES

l Connectors: MTP or MPO in male or female

l Cable: 8 or 12 fibers in flat or round cable (24 fibers TBD)

l Jacket: PVC, PVC OFNP or LSFRZH

l Support A,B or C Polarity Method

l Compliance OM2, OM3, OM4, OS1/OS2

l Bend insensitive fibers (G567A2) available for selection

MTP and MPO maximize the capacity in data center, increasing fiber density on fiber shelves and faceplates and also improving and simplifying routing.

Part Number	Part Description	Cable Color	MPO/MTP Color
MPO(F) to MPO(F) Array
FPCCFFBCAC01MYL	MPO/APC Array Cable,PVC,12C 3.0mm Round Cable,SM G652D 9/125um,Method A,1M	Yellow	Green
FPCCFHBCAC01MYL	MPO/APC Array Cable,PVC,12C 3.0mm Round Cable,SM G657A2 9/125um,Method A,1M	Yellow	Green
FPCCFFBDAD01MYL	MPO/APC Low Loss Array Cable,PVC,12C 3.0mm Round Cable,SM G652D 9/125um,Method A,1M	Yellow	Yellow
FPCCFHBDAD01MYL	MPO/APC Low Loss Array Cable,PVC,12C 3.0mm Round Cable,SM G657A2 9/125um,Method A,1M	Yellow	Yellow
FPCCFCBAAA01MOR	MPO Array Cable,PVC,12C 3.0mm Round Cable,10G 50/125um,Method A,1M	Orange	Ivory
FPCCFDBAAA01MAQ	MPO Array Cable,PVC,12C 3.0mm Round Cable,OM3 50/125um,Method A,1M	Aqua	Aqua
FPCCFDBBAB01MAQ	MPO Low Loss Array Cable,PVC,12C 3.0mm Round Cable,OM3 50/125um,Method A,1M	Aqua	Yellow
FPCCFEBAAA01MAQ	MPO Array Cable,PVC,12C 3.0mm Round Cable,OM4 50/125um,Method A,1M	Aqua	Aqua
FPCCFEBBAB01MAQ	MPO Low Loss Array Cable,PVC,12C 3.0mm Round Cable,OM4 50/125um,Method A,1M	Aqua	Yellow
MPO(F) to MPO(M) Array
FPCCFFBCAG01MYL	MPO/APC Array Cable,PVC,12C 3.0mm Round Cable,SM G652D 9/125um,w/Guide Pin,Method A,1M	Yellow	Green
FPCCFHBCAG01MYL	MPO/APC Array Cable,PVC,12C 3.0mm Round Cable,SM G657A2 9/125um,w/Guide Pin,Method A,1M	Yellow	Green
FPCCFFBDAH01MYL	MPO/APC Low Loss Array Cable,PVC,12C 3.0mm Round Cable,SM G652D 9/125um,w/Guide Pin,Method A,1M	Yellow	Yellow
FPCCFHBDAH01MYL	MPO/APC Low Loss Array Cable,PVC,12C 3.0mm Round Cable,SM G657A2 9/125um,w/Guide Pin,Method A,1M	Yellow	Yellow
FPCCFCBAAE01MOR	MPO Array Cable,PVC,12C 3.0mm Round Cable,10G 50/125um,w/Guide Pin,Method A,1M	Orange	Ivory
FPCCFDBAAE01MAQ	MPO Array Cable,PVC,12C 3.0mm Round Cable,OM3 50/125um,w/Guide Pin,Method A,1M	Aqua	Aqua
FPCCFDBBAF01MAQ	MPO Low Loss Array Cable,PVC,12C 3.0mm Round Cable,OM3 50/125um,w/Guide Pin,Method A,1M	Aqua	Yellow
FPCCFEBDAE01MAQ	MPO Array Cable,PVC,12C 3.0mm Round Cable,OM4 50/125um,w/Guide Pin,Method A,1M	Aqua	Aqua
FPCCFEBDAF01MAQ	MPO Low Loss Array Cable,PVC,12C 3.0mm Round Cable,OM4 50/125um,w/Guide Pin,Method A,1M	Aqua	Yellow

* For other lengths (Meters), replace 01 before M with 02,03,05,10,15,20,25. Polarity Methods are available for Method A (A), Method B (B), or Method C (C).

P/N: FPCCFEBDAF01MAQ

Jacket	C	C=Patch cord (PVC)	L=Patch cord (LSFRZH)	P= Patch cord (PVC OFNP)
Cable Type	F	C=8C Round Cable	F=12C 3.0mm Round Cable
Connector	B	A=MTP	B=MPO
Method	A	A=Method A	B=Method B	C=Method C
Length	01M	1M(01),2M(02),3M(03),5M(05),10M(10),15M(15)20M(20),25M(25)
