Product Details

FPK

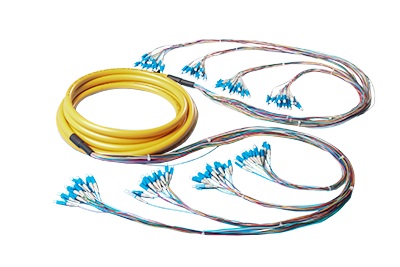

Break Out Cable

Inquire

Product Introduction

FEATURES

l Connectors: ST, FC, SC or LC

l Breakout cables: 24,36 or 48 cables

l Breakout Cable Types: 900um, 2.0mm or 3.0mm

l Compliance OM1, OM2, OM3, OM4, OS1/OS2

l PC, SPC, UPC, and APC polish meet standard requirement

l Options for Pulling Eyes

l Bend insensitive fibers (G567A2) available for selection

Break out cables are for the purpose of extended length and backbone in data centers, are suitable for connection from one cabinet/zone to another, such MDA and HAD.

Part Number	Part Description	Cable Color
ST Break Out
FPKMEFBCBC03MYL	ST/SPC Break Out Cable,LSFRZH,24C 2.0mm,SM G652D 9/125um,Both End Pulling Eye,3M	Yellow
FPKMEHBCBC03MYL	ST/SPC Break Out Cable,LSFRZH,24C 2.0mm,SM G657A2 9/125um,Both End Pulling Eye,3M	Yellow
FPKMEABABA03MOR	ST/PC Break Out Cable,LSFRZH,24C 2.0mm,OM1 62.5/125um,Both End Pulling Eye,3M	Orange
FPKMEBBABA03MOR	ST/PC Break Out Cable,LSFRZH,24C 2.0mm,OM2 50/125um,Both End Pulling Eye,3M	Orange
FPKMEDBABA03MAQ	ST/PC Break Out Cable,LSFRZH,24C 2.0mm,OM3 50/125um,Both End Pulling Eye,3M	Aqua
FPKMEEBABA03MAQ	ST/PC Break Out Cable,LSFRZH,24C 2.0mm,OM4 50/125um,Both End Pulling Eye,3M	Aqua
FC Break Out
FPKMEFACAC03MYL	FC/SPC Break Out Cable,LSFRZH,24C 2.0mm,SM G652D 9/125um,Both End Pulling Eye,3M	Yellow
FPKMEHACAC03MYL	FC/SPC Break Out Cable,LSFRZH,24C 2.0mm,SM G657A2 9/125um,Both End Pulling Eye,3M	Yellow
FPKMEAAAAA03MOR	FC/PC Break Out Cable,LSFRZH,24C 2.0mm,OM1 62.5/125um,Both End Pulling Eye,3M	Orange
FPKMEBAAAA03MOR	FC/PC Break Out Cable,LSFRZH,24C 2.0mm,OM2 50/125um,Both End Pulling Eye,3M	Orange
FPKMEDAAAA03MAQ	FC/PC Break Out Cable,LSFRZH,24C 2.0mm,OM3 50/125um,Both End Pulling Eye,3M	Aqua
FPKMEEABAB03MAQ	FC/PC Break Out Cable,LSFRZH,24C 2.0mm,OM4 50/125um,Both End Pulling Eye,3M	Aqua
SC Break Out
FPKMEFCHCH03MYL	SC/SPC Break Out Cable,LSFRZH,24C 2.0mm,SM G652D 9/125um,Both End Pulling Eye,3M	Yellow
FPKMEHCHCH03MYL	SC/SPC Break Out Cable,LSFRZH,24C 2.0mm,SM G657A2 9/125um,Both End Pulling Eye,3M	Yellow
FPKMEACFCF03MOR	SC/PC Break Out Cable,LSFRZH,24C 2.0mm,OM1 62.5/125um,Both End Pulling Eye,3M	Orange
FPKMEBCFCF03MOR	SC/PC Break Out Cable,LSFRZH,24C 2.0mm,OM2 50/125um,Both End Pulling Eye,3M	Orange
FPKMEDCFCF03MAQ	SC/PC Break Out Cable,LSFRZH,24C 2.0mm,OM3 50/125um,Both End Pulling Eye,3M	Aqua
FPKMEECFCF03MAQ	SC/PC Break Out Cable,LSFRZH,24C 2.0mm,OM4 50/125um,Both End Pulling Eye,3M	Aqua
LC Break Out
FPKMEFDHDH03MYL	LC/SPC Break Out Cable,LSFRZH,24C 2.0mm,SM G652D 9/125um,Both End Pulling Eye,3M	Yellow
FPKMEHDHDH03MYL	LC/SPC Break Out Cable,LSFRZH,24C 2.0mm,SM G657A2 9/125um,Both End Pulling Eye,3M	Yellow
FPKMEADFDF03MOR	LC/PC Break Out Cable,LSFRZH,24C 2.0mm,OM1 62.5/125um,Both End Pulling Eye,3M	Orange
FPKMEBDFDF03MOR	LC/PC Break Out Cable,LSFRZH,24C 2.0mm,OM2 50/125um,Both End Pulling Eye,3M	Orange
FPKMEDDFDF03MAQ	LC/PC Break Out Cable,LSFRZH,24C 2.0mm,OM3 50/125um,Both End Pulling Eye,3M	Aqua
FPKMEDDGDG03MAQ	LC Low loss Break Out Cable,LSFRZH,24C 2.0mm,OM3 50/125um,Both End Pulling Eye,3M	Aqua
FPKMEEDFDF03MAQ	LC/PC Break Out Cable,LSFRZH,24C 2.0mm,OM4 50/125um,Both End Pulling Eye,3M	Aqua
FPKMEEDGDG03MAQ	LC Low Loss Break Out Cable,LSFRZH,24C 2.0mm,OM4 50/125um,Both End Pulling Eye,3M	Aqua

* For other lengths (Meters), replace 03 before M with 05,10,15,20,25,30,40,50,60,70,80,90. Breakout cables are available for 24(E), 36(F), 48(G) cables.

P/N: FPKMEEDGDG03MAQ

Breakout Cable	K	J=900um		K=2.0mm			L=3.0mm
Cables	E	24(E)	36(F)	48(G)	72(H)	96(I)	144(J) fibers
Length	03M	1M(01),2M(02),3M(03),5M(05),10M(10),15M(15)20M(20),25M(25)
