Product Details

FPH

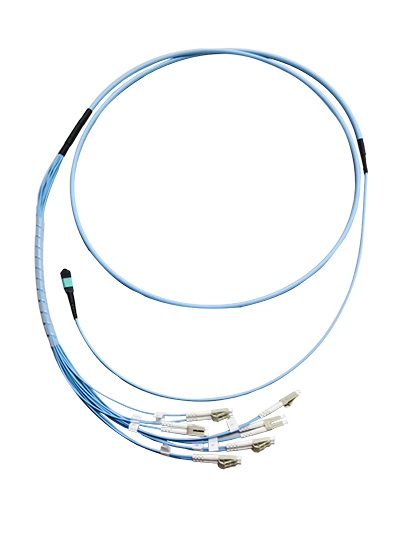

Trunk Harness Assembly

Product Introduction

l   MTP or MPO with (or w/o) Guide Pin

l   Cable: 8,12,24,36,48,72,96 or 144 fibers

l   ST, FC, SC or LC in forms of simplex or duplex channeling

l   Breakout cable: 900um, 2.0mm or 3.0mm

l   Jacket: PVC, PVC OFNP or LSFRZH

l   Compliance OM2, OM3, OM4, OS1/OS2

l   Bend insensitive fibers (G567A2) available for selection

l   Staggered Breakout Legs



The trunk harness assembly is for backbone installation. MTP/MPO is in one end and the other end that single fiber connector interface available in ST/FC, SC or LC in forms of simplex or duplex channeling.





Part Number

Part Description

Cable Color

MPO(M) to SC Trunk Harness

FPHDBFBGCH03MYL

MPO/APC to SC/SPC Trunk Harness,PVC,12C 2.0mm,SM G652D 9/125um,w/Guide Pin,w/Clip,End B Pulling Eye,3M

Yellow

FPHDBFBGCJ03MYL

MPO/APC to SC/SPC Trunk Harness,PVC,12C 2.0mm,SM G652D 9/125um,w/Guide Pin,w/Clip,End B Pulling Eye,3M

Yellow

FPHDBHBGCJ03MYL

MPO/APC to SC/APC Trunk Harness,PVC,12C 2.0mm,SM G657A2 9/125um,w/Guide Pin,w/Clip,End B Pulling Eye,3M

Yellow

FPHDBBBECF03MOR

MPO to SC/PC Trunk Harness,PVC,12C 2.0mm,OM2 50/125um,w/Guide Pin,w/Clip,End B Pulling Eye,3M

Orange

FPHDBDBECF03MAQ

MPO to SC Trunk Harness,PVC, 12C 2.0mm,OM3 50/125um,w/Guide Pin,w/Clip,End B Pulling Eye,3M

Aqua

FPHDBEBECF03MAQ

MPO to SC Trunk Harness,PVC, 12C 2.0mm,OM4 50/125um,w/Guide Pin,w/Clip,End B Pulling Eye,3M

Aqua

FPHDBEBFCG03MAQ

MPO to SC Low Loss Trunk Harness,PVC, 12C 2.0mm,OM4 50/125um,w/Guide Pin,w/Clip,End B Pulling Eye,3M

Aqua

MPO(M) to LC Trunk Harness

FPHDBFBGDH03MYL

MPO/APC to LC/SPC Trunk Harness,PVC,12C 2.0mm,SM G652D 9/125um,w/Guide Pin,w/Clip,End B Pulling Eye,3M

Yellow

FPHDBHBGDH03MYL

MPO/APC to LC/SPC Trunk Harness,PVC,12C 2.0mm,SM G652D 9/125um,w/Guide Pin,w/Clip,End B Pulling Eye,3M

Yellow

FPHDBFBGDJ03MYL

MPO/APC to LC/APC Trunk Harness,PVC,12C 2.0mm,SM G657A2 9/125um,w/Guide Pin,w/Clip,End B Pulling Eye,3M

Yellow

FPHDBHBGDJ03MYL

MPO/APC to LC/APC Trunk Harness,PVC,12C 2.0mm,SM G657A2 9/125um,w/Guide Pin,w/Clip,End B Pulling Eye,3M

Yellow

FPHDBBBEDF03MOR

MPO to LC/PC Trunk Harness,PVC,12C 2.0mm,OM2 50/125um,w/Guide Pin,w/Clip,End B Pulling Eye,3M

Orange

FPHDBDBEDF03MAQ

MPOto LC Trunk Harness,PVC, 12C 2.0mm,OM3 50/125um,w/Guide Pin,w/Clip,End B Pulling Eye,3M

Aqua

FPHDBEBEDF03MAQ

MPO to LC Trunk Harness,PVC, 12C 2.0mm,OM4 50/125um,w/Guide Pin,w/Clip,End B Pulling Eye,3M

Aqua

FPHDBEBFDG03MAQ

MPO to LC Low Loss Trunk Harness,PVC, 12C 2.0mm,OM4 50/125um,w/Guide Pin,w/Clip,End B Pulling Eye,3M

Aqua



P/N:   FPHDBEBFDG03MAQ

Brakeout Cable

H

G=900um;  H=2.0mm;  I=3.0mm

Jacket

D

D=PVC End B Pulling Eye; M=LSFRZH End B Pulling Eye; Q=PVC OFNP End B Pulling Eye

Cable

B

A=8; B=12; C=24; D=36; E=48, F=72, G=96; H=144 fibers

Connectors A

BF

AA=MTP(F);   AB=MTP/MM Low Loss(F);   AC=MTP/APC(F);

AD=MTP/APC Low Loss(F)  AE=MTP(M);   AF=MTP/MM Low Loss(M); AG=MTP/APC(M);   AH=MTP/APC Low Loss(M)   BA=MPO(F);

BB=MPO/MM Low Loss(F); BC=MPO/APC(F); BD= MPO/APC Low Loss(F)   BE=MPO(M);    BF=MPO/MM Low Loss(M);     BG=MPO/APC(M);

BH= MPO/APC Low Loss(M)

Connectors B

DG

AA=FC (MM);  AB=FC (MM Low Loss); AC=FC (SM/SPC);

AE=FC (SM/APC)  BA=ST (MM);  BB=ST (MM Low Loss);

BC=ST (SM/SPC);  BD=ST (SM/UPC)  CF=SC (MM);

CG=SC (MM Low Loss);  CH=SC (SM/SPC);  CJ=SC (SM/APC)

DF=LC (MM);  DG=LC (MM Low Loss);  DH=LC (SM/SPC);

DJ=LC (SM/APC)

Length

03

3M(03),5M(05),10M(10),15M(15),20M(20),25M,30M,40M,50M,60M,70M,80M,90M.
