l Compliant with IEEE 802.3af/at
l Supporting 10/100 Base-T applications
l 4 POE ports with classification identify
l Total power budget 60W and up to 30W per port
l POE Power Priority
l Supporting duplex mode (Half/Full) auto-detection
l LED indication for LNK/ACT and Power status
l Plug and play installation
OVERVIEW

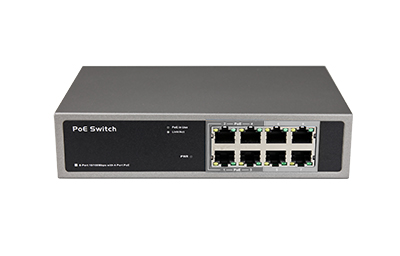

PES084EH, the 8 Port FE Switch with 4 POE ports, is an ideal for small businesses and workgroups requiring POE deployment with wireless access points, IP-based surveillance cameras or IP phones in any places.
With the internal power supply and power priority design, PES084EH provides 60W power budget and simplifies power management in 4 POE ports. It is compliant with IEEE 802.3af/at and supports up to 30W on each POE port.
SPECIFICATIONS
|
Standard
|
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control
IEEE 802.3af & IEEE 802.3at
|
|
Interface
|
8 * 10/100M bps RJ45 Switch Ports
|
|
POE
|
4 Ports, 30W Max. per port
|
|
Power Consumption
|
65 W
|
|
Power + Data Out
|
1/2(+)&3/6(-) for Power & Data
|
|
MAC Address
|
1K
|
|
Buffer memory
|
64KB
|
|
Forwarding mode
|
Store-and-forward
|
|
Bandwidth
|
1.6Gbps
|
|
LED
|
AC Power on,
Ethernet Status Link/Ack,
PoE Act/Status.
|
|
AC Input Voltage
|
100~240V, 50/60Hz
|
|
AC Input Current
|
2A @ 100 ~ 240VAC
|
|
Dimensions
|
185 mm x 123 mm x 44mm (W x D x H)
|
|
Weight
|
1.2 KG
|
|
Operating Temperature
|
0 to 40°C
|
|
Storage Temperature
|
-20°C ~ 70°C
|
|
Operating Humidity
|
10%~90%RH
|
|
Storage Humidity
|
10%~90%RH
|
|
Certification
|
CE
|
|
Warranty
|
12 Months
|
