Product Details

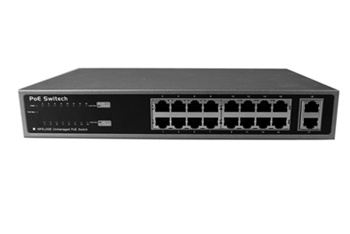

PES18162EH

16 Port FE + 2 GbE POE Switch, IEEE802.3af/at, 150W

Product Introduction

FEATURES

Compliant with IEEE 802.3af/at
16 10/100Mbps ports + 2 Gigabit ports
Total power budget 130W
Supporting 10/100 Base-T applications
LED indication for AC power, Ethernet status, and PoE Max
Saving up to 83% power with Green Technology
Easy installation and maintenance
19” rack mount kit



OVERVIEW

PES18162EH offers 16 10/100Mbps Fast Ethernet POE ports and 2 Gigabit uplink ports. Its two GbE uplink ports offer extensibility, flexibility and connectivity to the Core switch or Servers. PES18162EH comes with a mount kit for department on 19” rack. With a small compact metal box, it is also suitable to set on desk for SOHO or small and medium-sized businesses (SMBs).

PES18162EH enables home and office users to easily connect and supply power to Power over Ethernet (PoE) devices such as wireless Access Points (APs), IP cameras, and IP phones. By integrating the data transmitting cable and power cord, it eliminates the effort constructing your network.

SPECIFICATIONS

Hardware Specification

Ports

16 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports

2 10/100/1000Mbps RJ-45 Auto-MDI/MDI-X ports

LED Indicators

Power Link/Activity (Green)

PoE Max (Green)

10/100M LNK / ACT(Green)

1000M LNK / ACT(Green)

Switch Architecture

Store and Forward

Switch Fabric

7.2Gbps

MAC Address

8K MAC address table with Auto learning function

Power Requirement

AC 100~240V, 50/60Hz

Power Consumption

150 Watts

Dimension (W x D x H)

280 x 180 x 44 mm, 1U height

Weight

1.7 kg

Power over Ethernet

PoE Standard

IEEE 802.3af/at Power over Ethernet / PSE

Power Output

Per Port 54V DC, 30W (Max.)

Power Pin Assignment

1/2(+), 3/6(-), Mode-A

PoE Power Budget

130 Watts

Environmental & Safety

Operating environment

0~40 degree C, 20%~90%RH

Storage environment

-10 ~55 degree C, 5%~90% RH (non-condensing)
